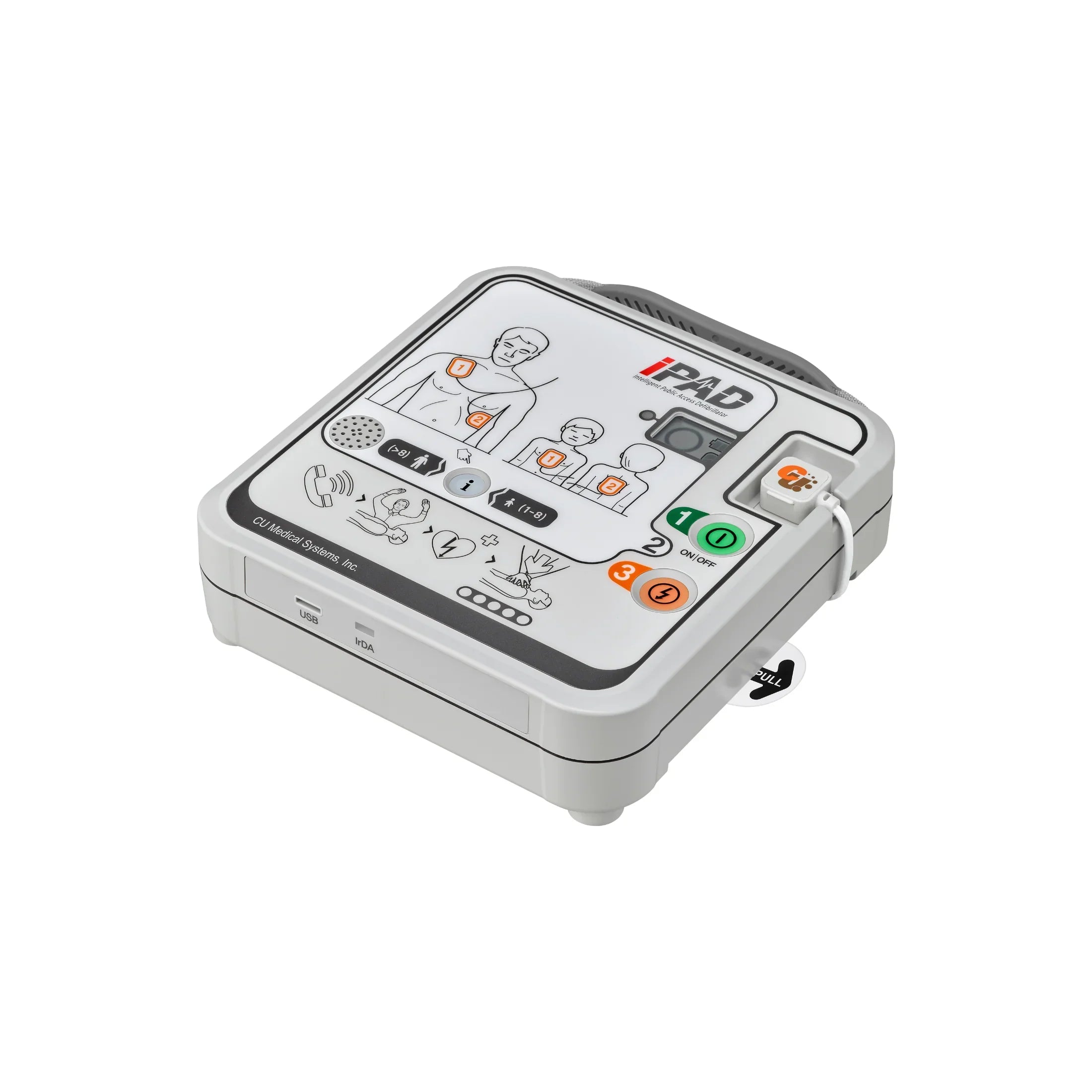

CU-SPR Defibrillator

The CU-SPR is CU Medical’s next-generation public access AED, engineered for fast, reliable, and intuitive lifesaving response. Built on advanced e-cube biphasic technology, the CU-SPR delivers high-performance defibrillation with enhanced durability, intelligent guidance, and rugged environmental protection, making it ideal for workplaces, schools, transport hubs, community areas, and demanding outdoor environments.

Advanced Next-Generation Design

Faster shock capability with improved analysis and charge times.
Enhanced guidance through clear voice prompts and bright visual indicators.
Intuitive interface designed for both trained and untrained responders.

Dual-Mode for Adults & Children

Integrated switch instantly adjusts energy levels for paediatric patients.
Single set of pads suitable for adults and children—no pad change required.

Rugged, High-Protection Build

IP66 protection against dust and water.
Available with an optional IP68 variant for extreme environments.
Military-grade construction tested to MIL-STD-810G vibration standards.
Withstands harsh conditions, making it suitable for demanding locations.

Fast Response Performance

Rapid analysis and shock readiness for improved rescue outcomes.
Clear metronome guidance to support correct CPR rhythm.

Smart Status & Self-Tests

Automatic daily, weekly, and monthly self-testing.
LCD status screen provides instant visibility of battery life, pad expiry, and overall system readiness.

Reliable Data & Incident Recording

Records up to 5 events, each up to 3 hours long.
Easy data transfer via SD card for auditing, clinical review, or training.

Request a Quote

Technical Specifications

Operating Modes: Semi-automatic or Fully Automatic
Waveform: e-cube biphasic technology
Energy Levels: Adult 150J / Child 50J
Charge Time: <7 seconds (typical, new battery)
Analysis Time: 5–10 seconds (typical)
Memory: Stores 5 events, 3 hours each
Data Transfer: SD card
Noise Handling: Automatic volume adjustment based on ambient sound
Status Display: LCD panel showing battery & pad status

Environmental & Durability

Ingress Protection: IP66 (optional IP68)
Military Testing: MIL-STD-810G vibration test
Operating Temperature: 0°C to 50°C
Storage Temperature: –20°C to 60°C
Humidity: 5%–95% (non-condensing)

Dimensions & Weight

Dimensions: 260mm × 256mm × 69.5mm
Weight: Approx. 2.5kg (with battery and pads)

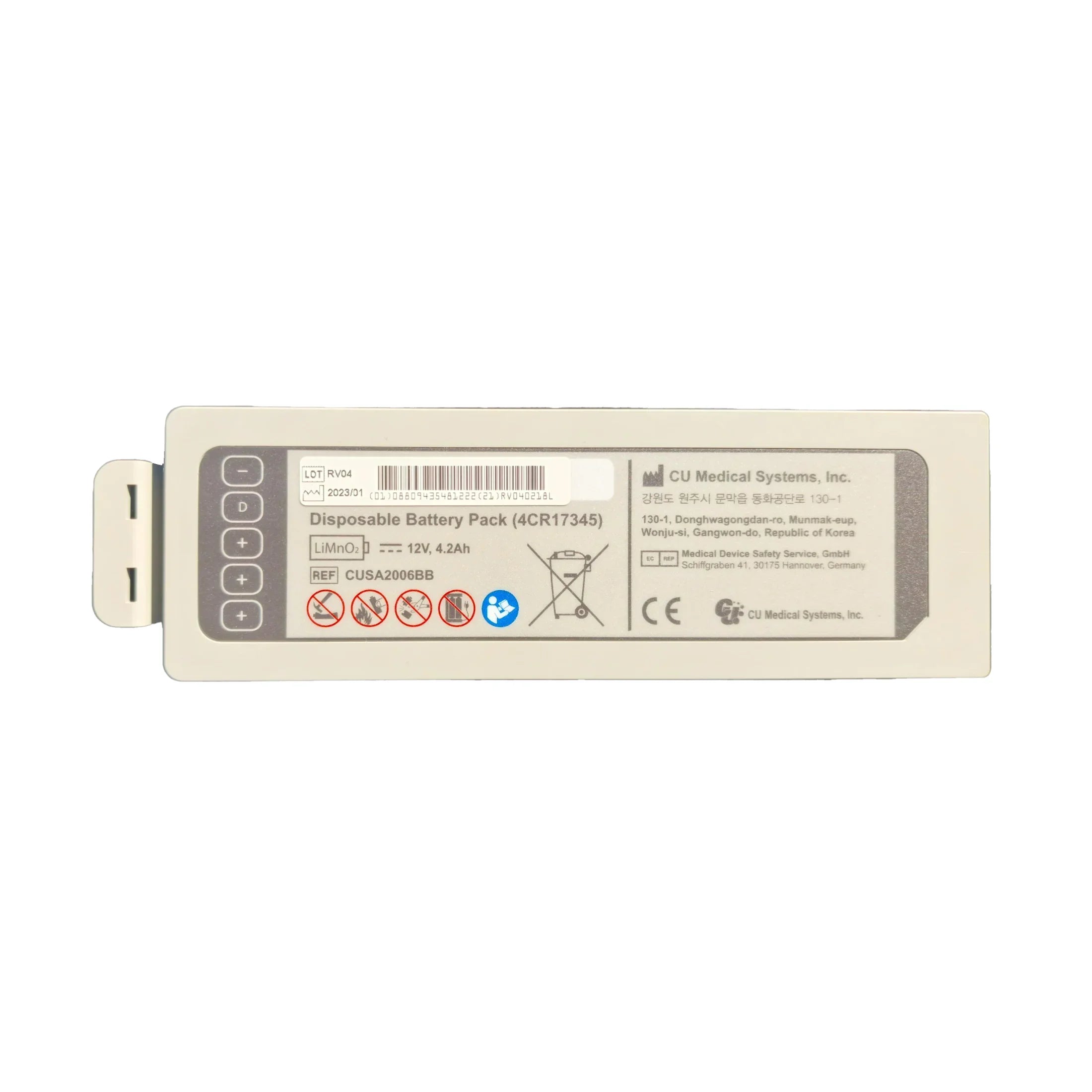

Battery

Long-life lithium battery
Standby life up to 5 years
Capable of delivering high shock count and extended monitoring duration

What’s Included

CU-SPR Defibrillator (Semi-Auto or Fully Auto model)

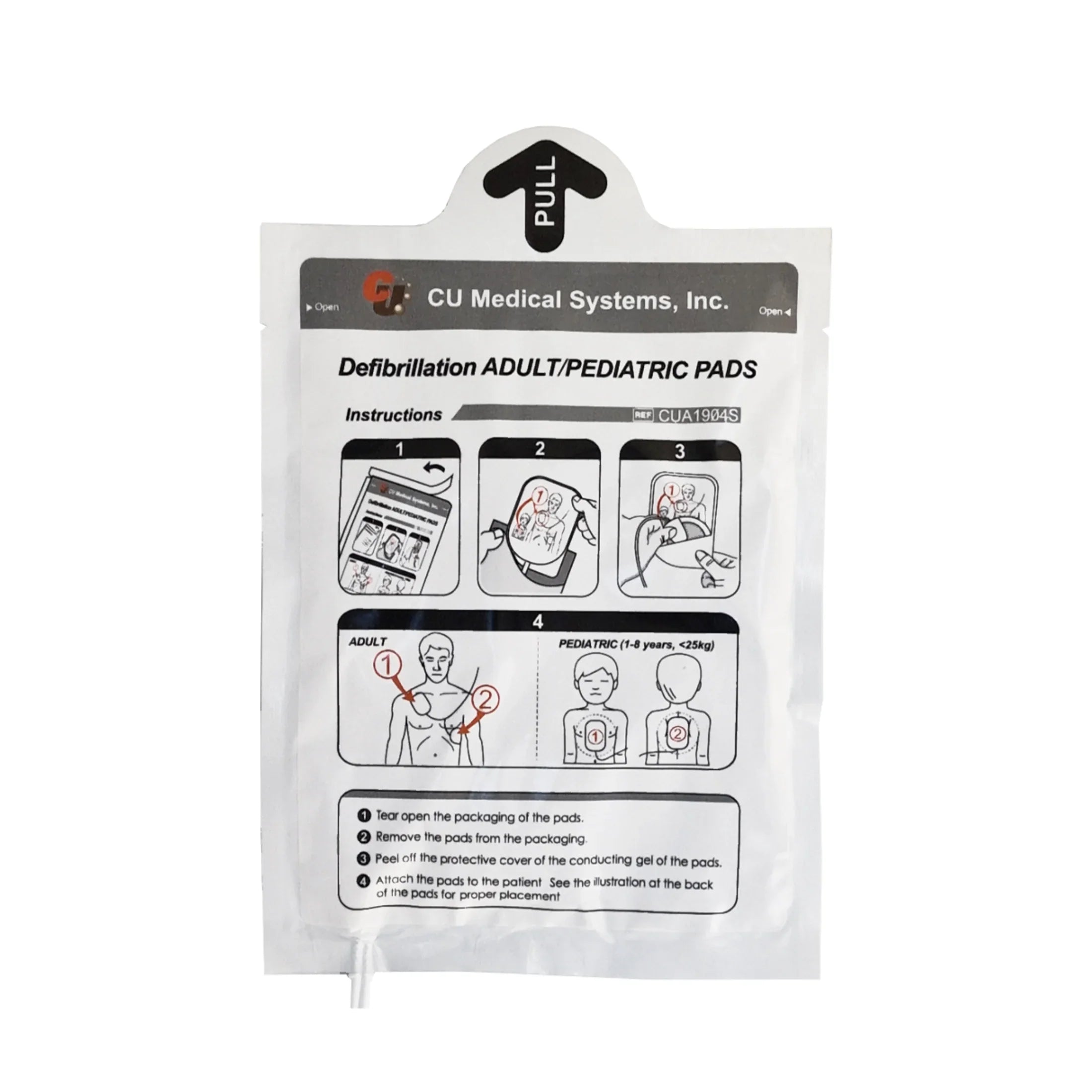

Combined adult/child electrode pads
Long-life lithium battery
Carry case
Quick reference guide & instructions

Who It’s For / Ideal Environments

Workplaces & offices
Schools, colleges & childcare environments
Public buildings & community centres
Retail, hospitality & leisure facilities
Industrial environments
Outdoor installations
Transport hubs & logistics sites

Durability & Environmental Performance

IP66 water and dust protection (with optional IP68 upgrade)
Military-grade vibration resistance
Designed for harsh, demanding, or outdoor rescue environments

Why Choose

The CU-SPR is a next-generation AED built for organisations that demand reliability, advanced performance, and rugged durability. With fast shock delivery, intelligent guidance, exceptional environmental protection, and a user-friendly design, it provides a powerful and dependable solution for effective emergency response wherever it’s needed.

Operating Modes: Semi-automatic or Fully Automatic
Waveform: e-cube biphasic technology
Energy Levels: Adult 150J / Child 50J
Charge Time: <7 seconds (typical, new battery)
Analysis Time: 5–10 seconds (typical)
Memory: Stores 5 events, 3 hours each
Data Transfer: SD card
Noise Handling: Automatic volume adjustment based on ambient sound
Status Display: LCD panel showing battery & pad status

Environmental & Durability

Ingress Protection: IP66 (optional IP68)
Military Testing: MIL-STD-810G vibration test
Operating Temperature: 0°C to 50°C
Storage Temperature: –20°C to 60°C
Humidity: 5%–95% (non-condensing)

Dimensions & Weight

Dimensions: 260mm × 256mm × 69.5mm
Weight: Approx. 2.5kg (with battery and pads)

Battery

Long-life lithium battery
Standby life up to 5 years
Capable of delivering high shock count and extended monitoring duration
